SPECIFICATIONS
Applicable fiber cores: 0.25/0.9/0.3/3.0*2.0mm
Blade Material: Tungsten steel
Brand Name: NATALINK
Choice: yes
Color: Gold/Silver
Cutting fiber length: 9-20mm
High-concerned chemical: None
Origin: Mainland China
Overall dimension: 8.3*5.5*5.2cm

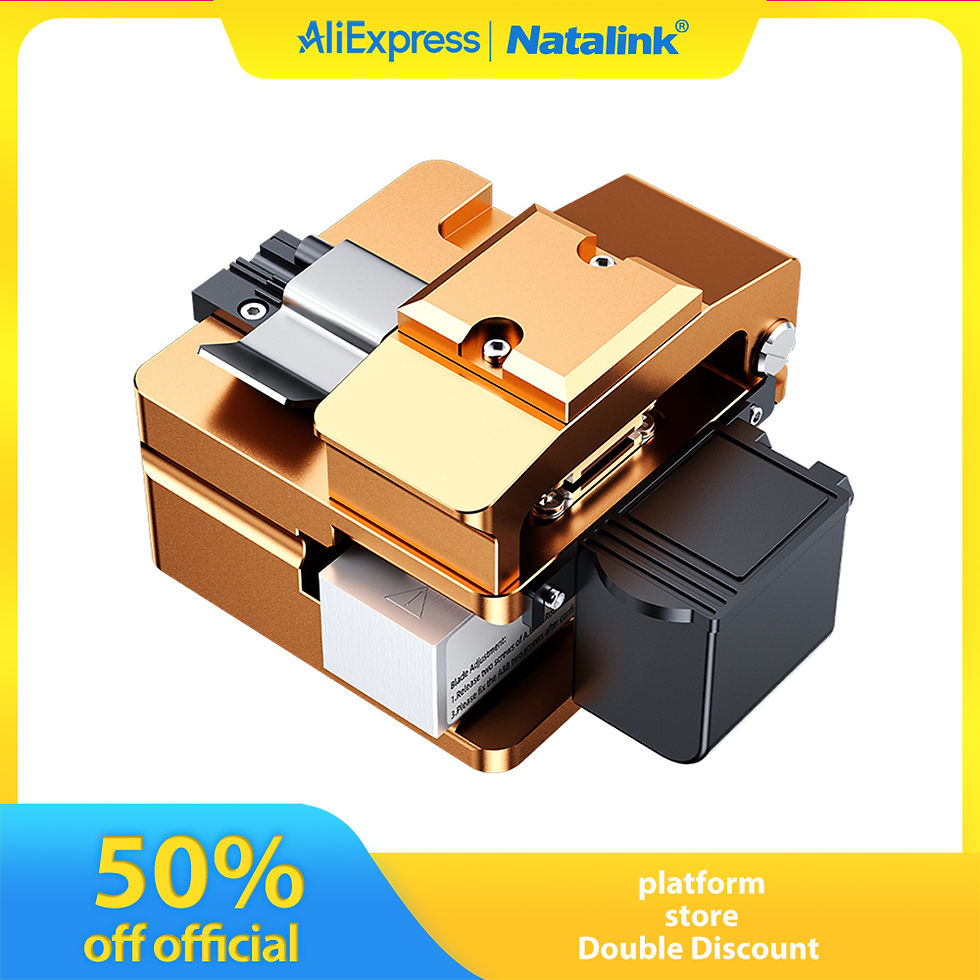

Product name: S09 Fiber Optic Cutter
Product weight: 255g
Wireless function: No
core diameter: 125μm
semi_Choice: yes

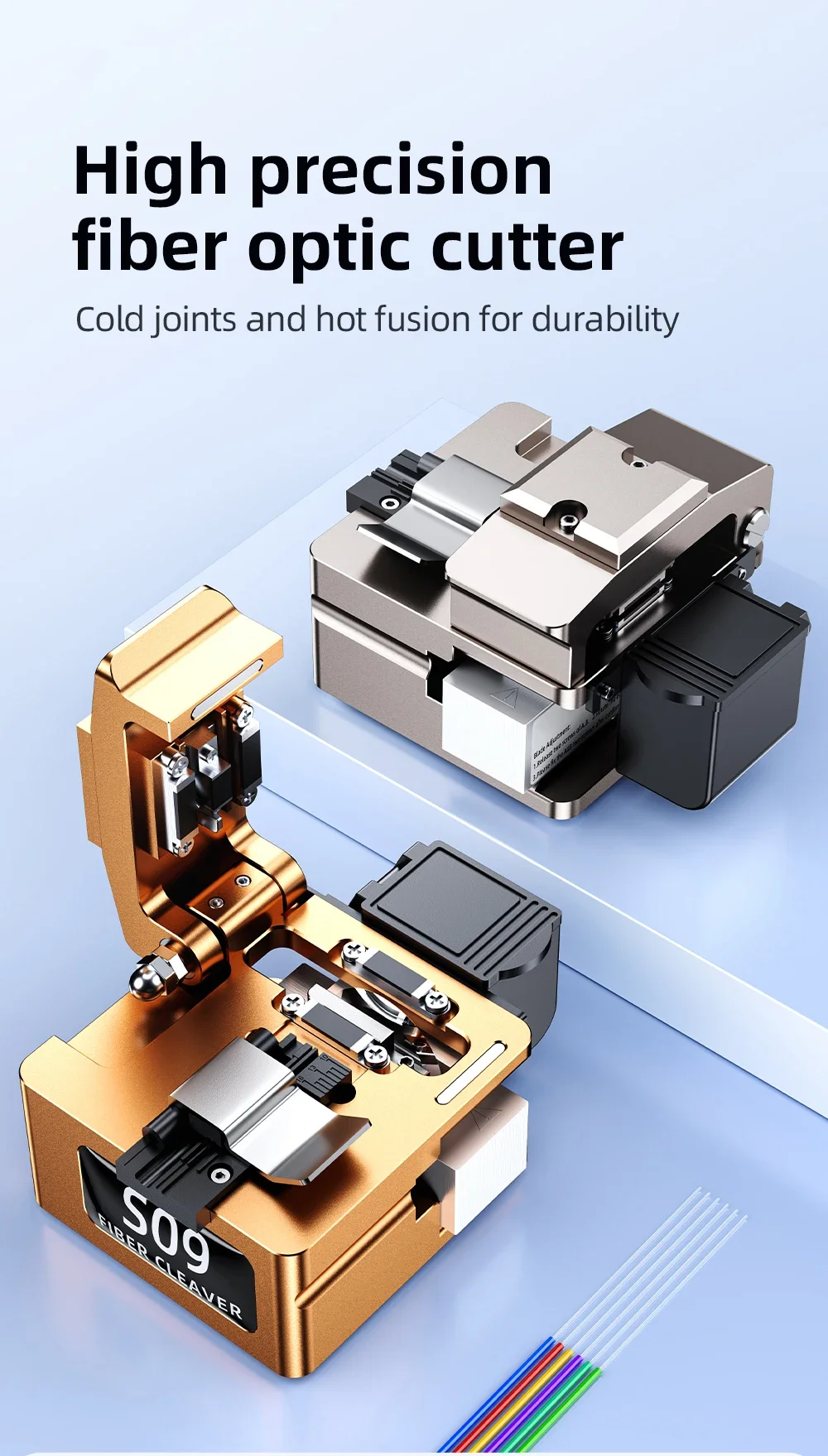

High Precision Fiber Optic Cutter
This cutter is designed for both cold joints and hot fusion, ensuring durability and reliability in fiber optic applications. It provides precise cuts essential for effective splicing.

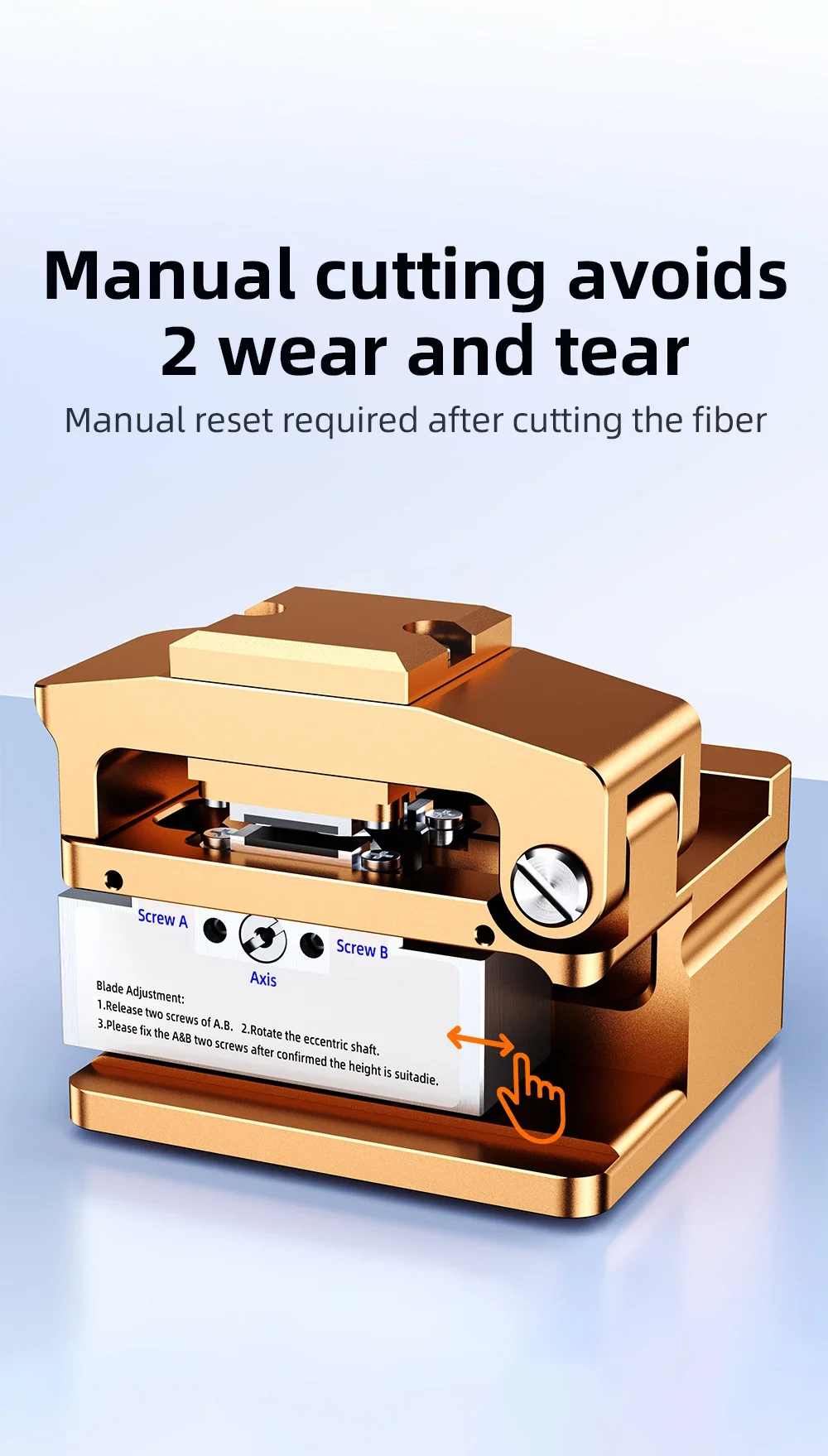

Manual Cutting Mechanism
The manual operation minimizes wear and tear on the tool. After cutting the fiber, a manual reset is required, ensuring that the cutter maintains its precision and performance over time.

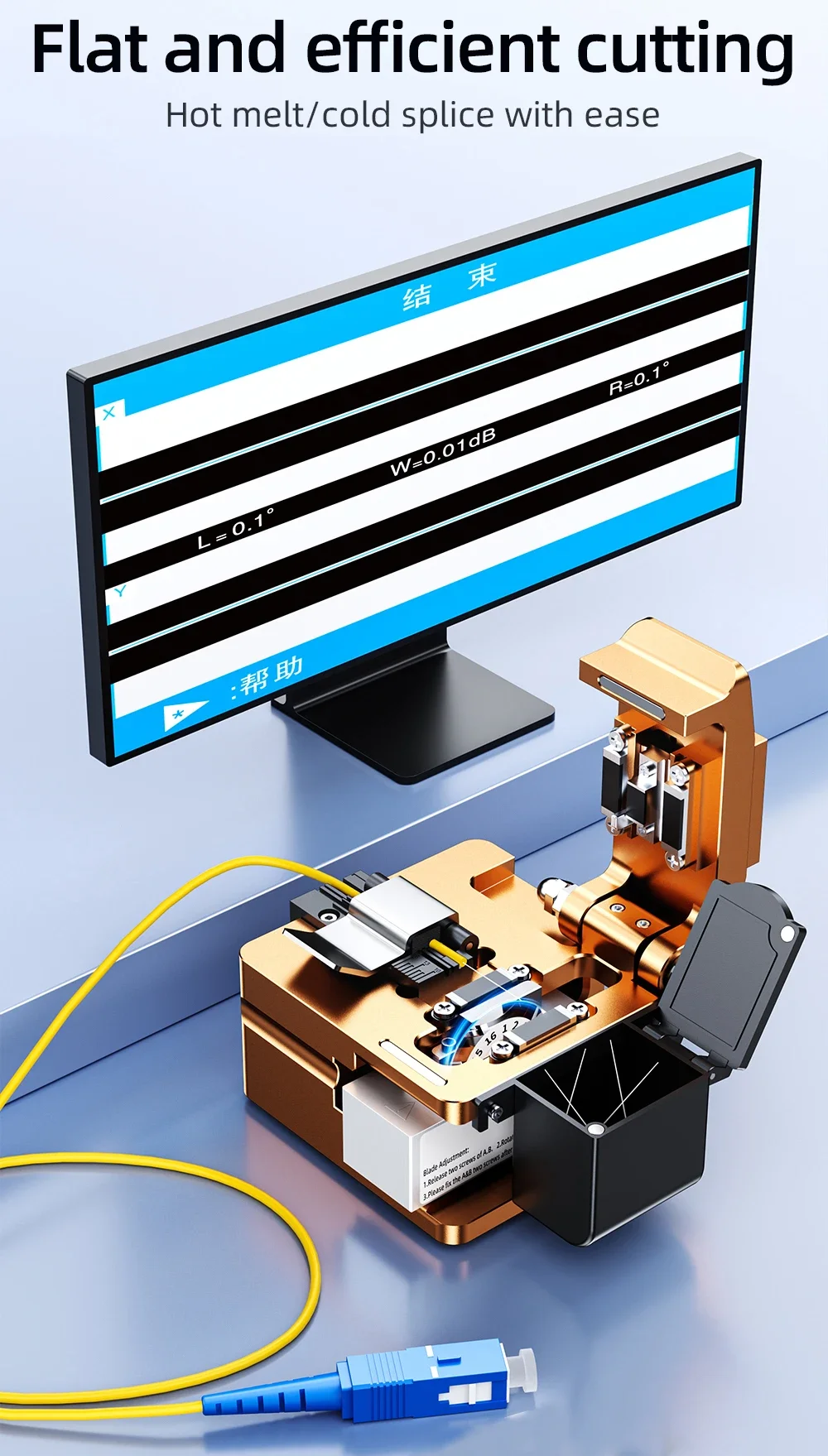

Flat and Efficient Cutting
The cutter allows for easy hot melt and cold splice operations, enabling users to achieve clean cuts quickly and efficiently, which is vital for maintaining fiber integrity.

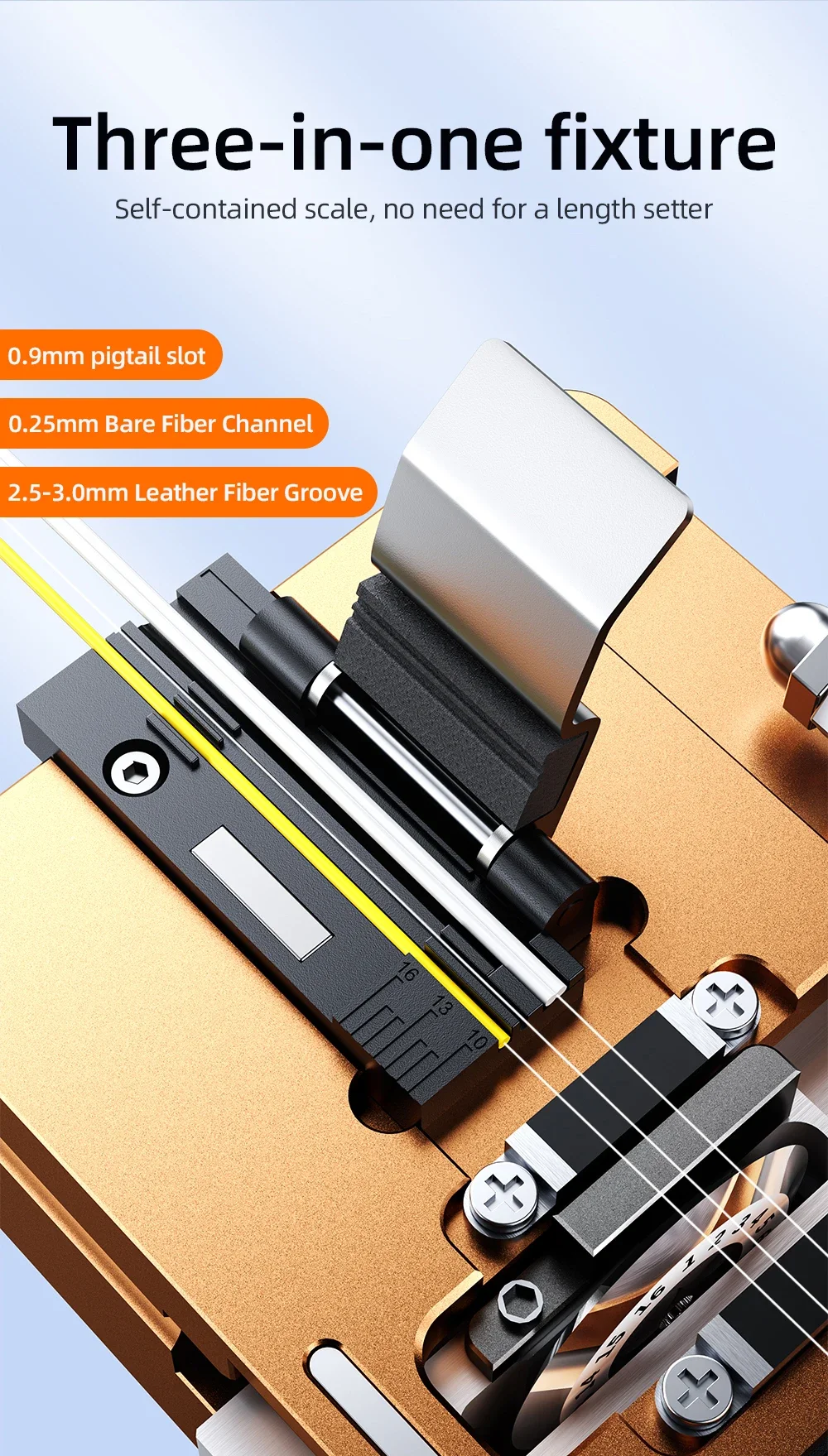

Three-in-One Fixture Design
The integrated fixture features a self-contained scale, eliminating the need for an external length setter. It includes slots for various fiber sizes: a 0.9mm pigtail slot, a 0.25mm bare fiber channel, and a 2.5-3.0mm leather fiber groove.
Stainless Steel Rail for Stability
The low-friction stainless steel rail enhances cutting accuracy over extended periods of use. This design helps maintain the core cutting precision of the tool through CNC precision machining.

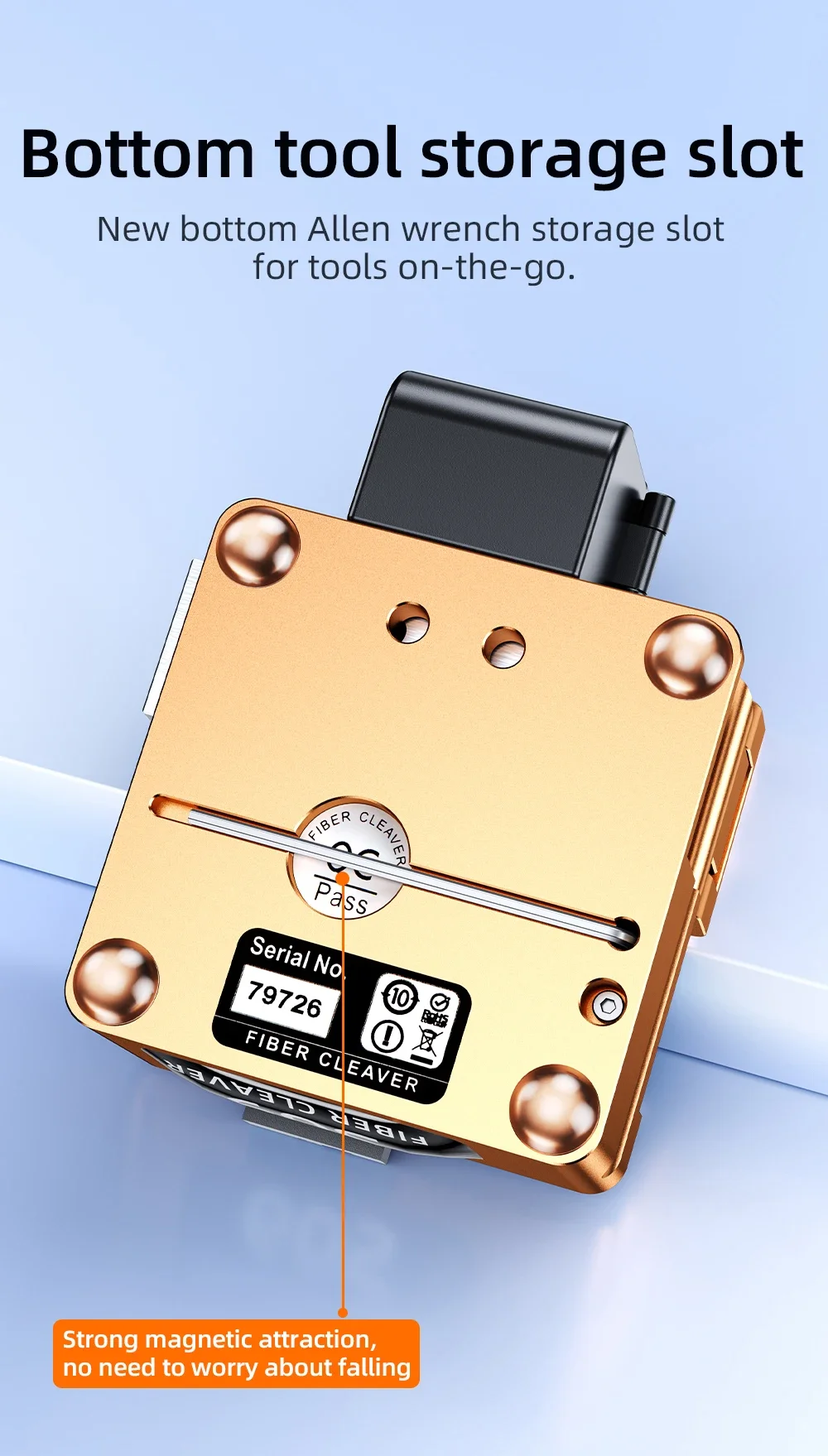

Convenient Tool Storage
The cutter includes a new bottom storage slot for an Allen wrench, providing easy access to tools on-the-go. The strong magnetic attraction ensures that tools stay securely in place, preventing loss during transport.
Product Parameters
This cutter is compatible with quartz fiber, capable of cutting lengths between 9-20mm with a cutting angle of less than 0.5°. It has a blade life of up to 58,000 cuts and weighs 255g, with overall dimensions of 8.3cm x 5.5cm x 5.2cm, making it compact and portable for field use
