SPECIFICATIONS

Accessory: Sampling cable
Accessory Type: Battery Accessories
Applications: 3.2v 3.7V lithium battery rated
Balance function: Yes(passive)
Battery Included: Yes
Battery series: 3S 4S 6S 7S 8S 10S 12S 13S 14S 15S 16S 17S 19S 20S 21S 23S 24S
Brand Name: NoEnName_Null
Certification: CE
Charger included: N
Model Number: BMS
Origin: Mainland China
Over charge protection: Yes
Over discharge protection: Yes
Short circuit protection: Yes
Temp. Sensor: Yes


Must read before buying

1. BMS is used to lithium battery pack, different batteries connected in series are not compatible.

2. E.g: 13S BMS, can't be used to 10S batteries connected in series battery pack, must be used on 13S' batteries connected in series lithium battery pack.


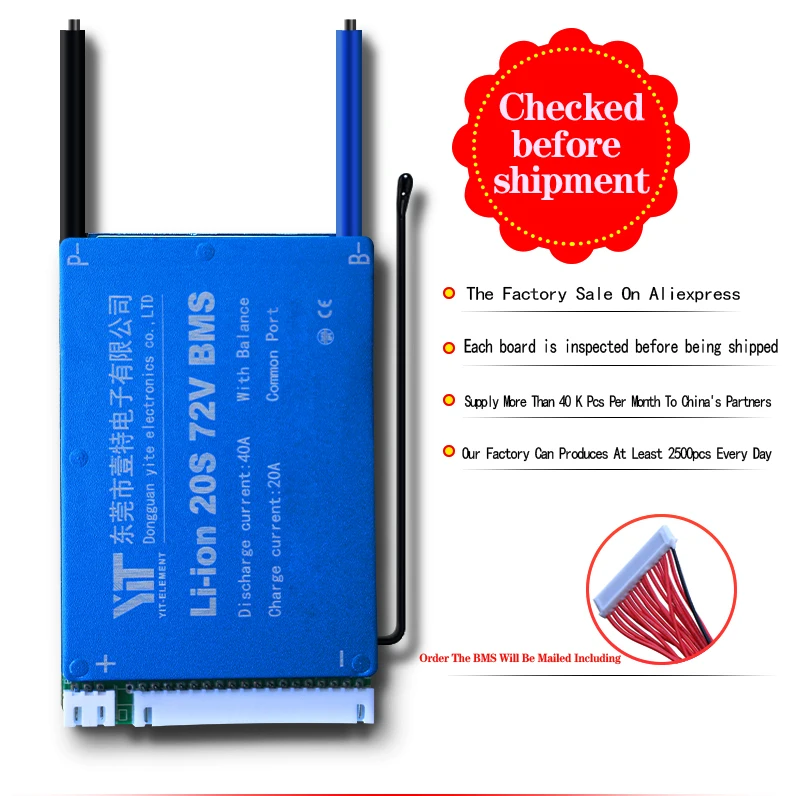

Brief Introduction

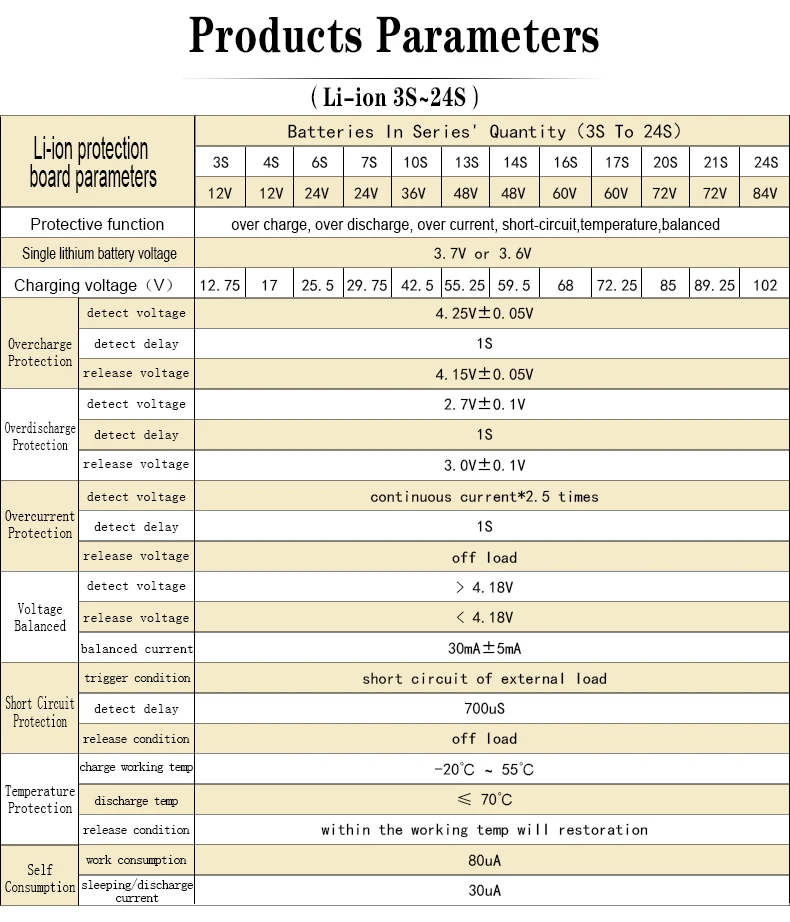

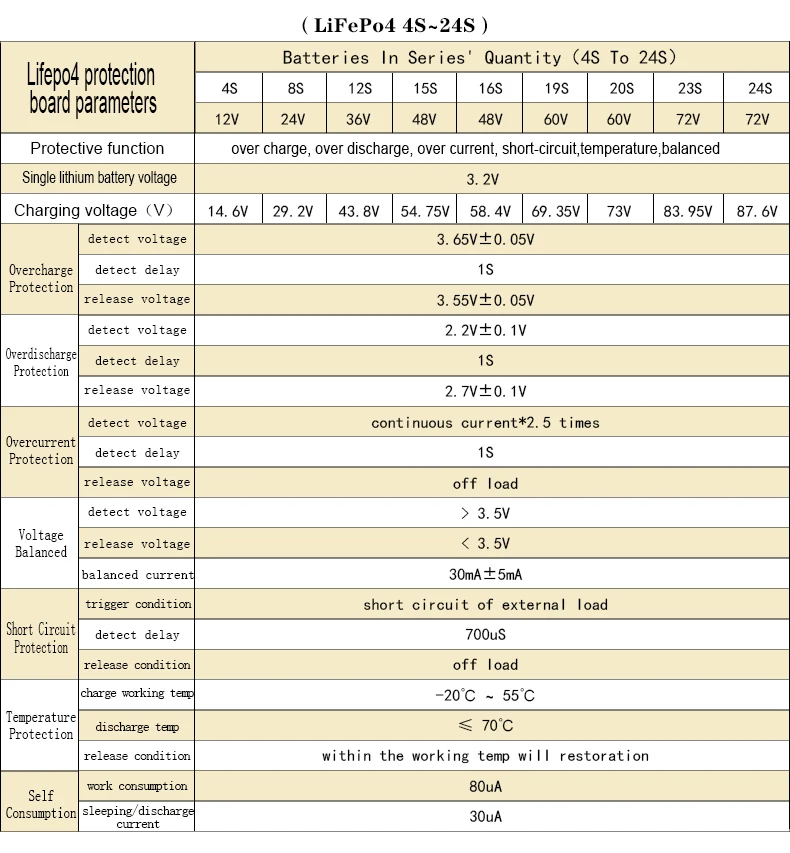

About Lithium Battery: Li-ion battery nominal voltage is 3.6V, 3.7V, Lifepo4 battery nominal voltage is 3.2V lithium battery,and LTO battery nominal voltage is 3.2V lithium battery (including 18650, 26650, polymer battery etc.).

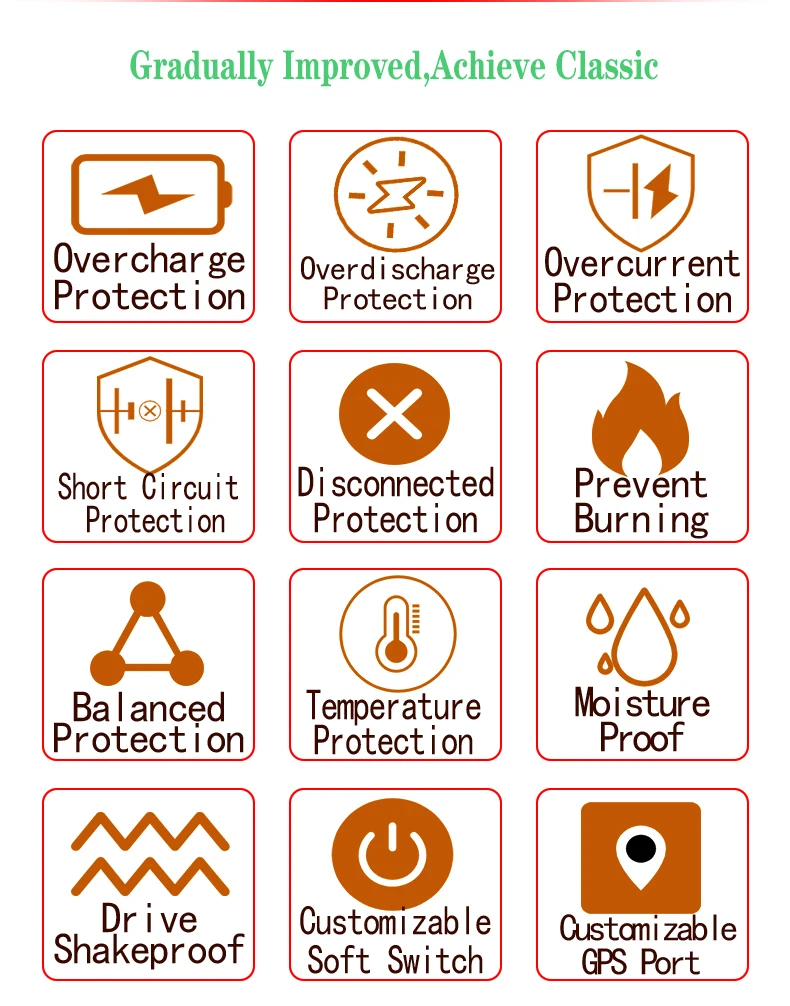

BMS Function: Overcharge protection function, over discharge protection function, over current protection function, short circuit protection function, battery balance management function, temperature protection function.

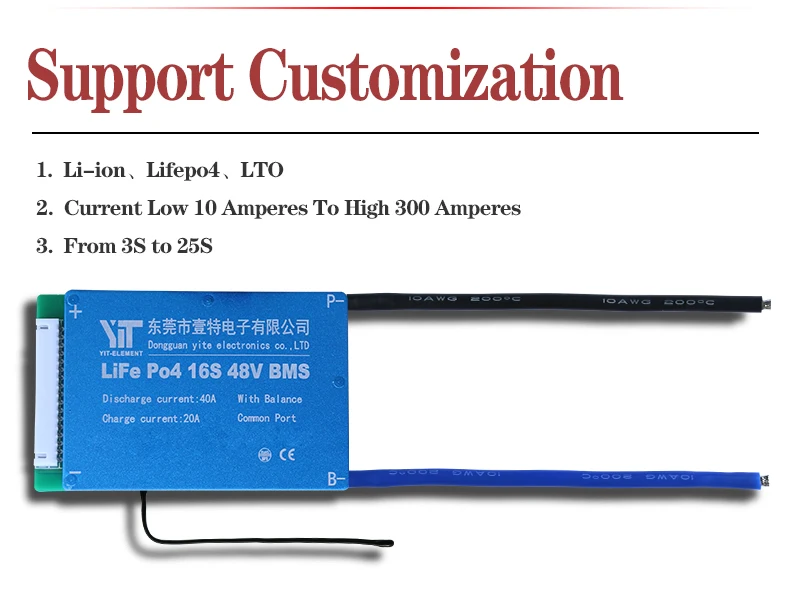

BMS Products: 7S or more adopts integrated scheme circuit, and 7S or less adopts single-section cascade scheme circuit.



Can be used but not limited to the above examples

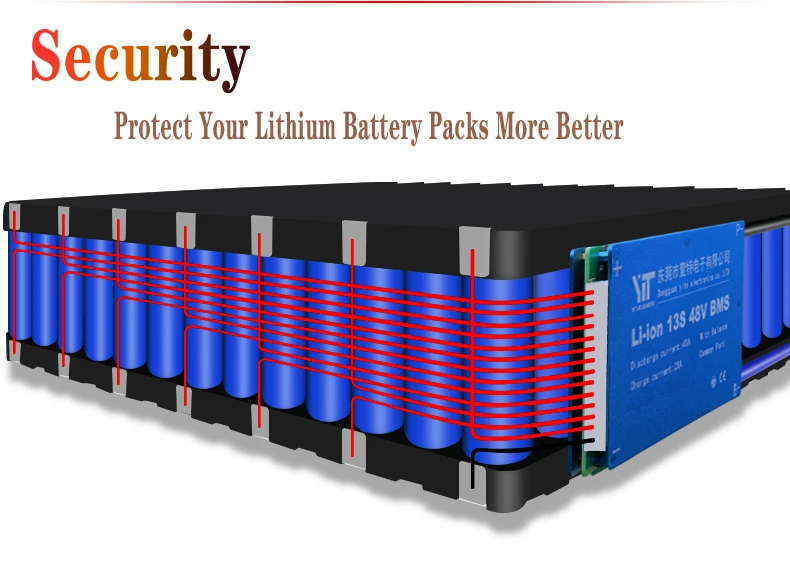

This picture based on 13S 48V 60A as example


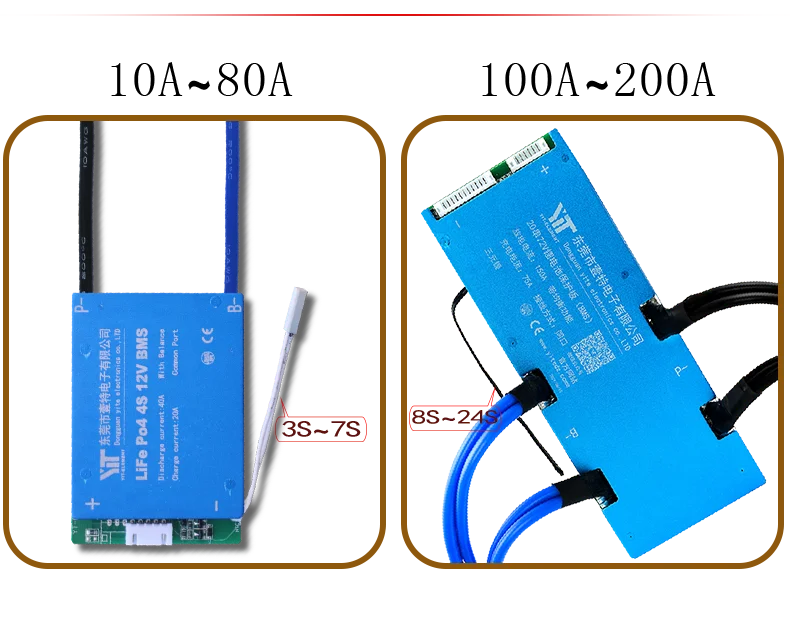

Note: The MOS of the low-amperage protection board is installed on one side, and the aluminum board is also single-sided.

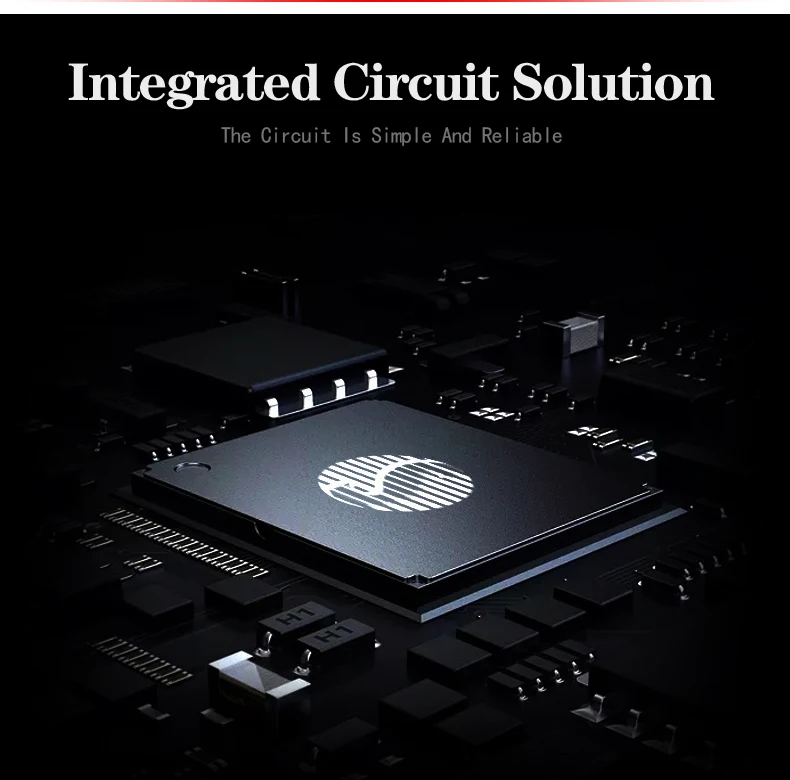

Integrated Circuit Solution
The protection board responds accurately and sensitively, which has more advantages than traditional solutions, saves circuit space, achieve the disconnection protection function.

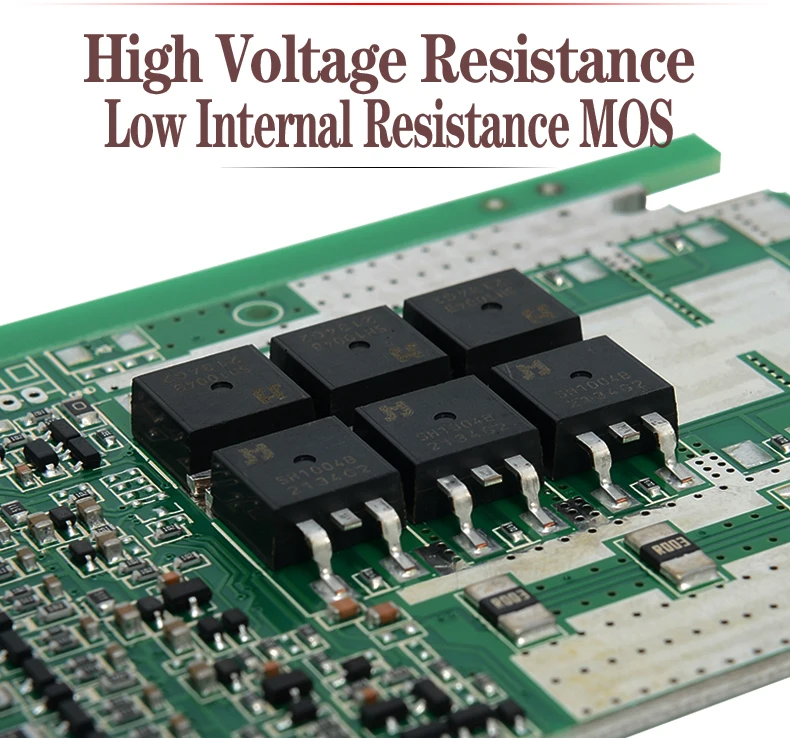

New Class A MOS
Use the high quality MOS can ensure product quality, low internal resistance during discharge, and low temperature rise during long-term discharge, without affecting the output of the battery, making the control safer.
Temperature protection

The 3S-7S is equipped with a mechanical temperature sensor, and the 8S-24S is equipped with NTC temperature control to achieve functions such as charging temperature protection and discharge temperature protection, effectively improving the safety of battery use, and solving the potential safety hazards caused by thermal runaway of batteries.

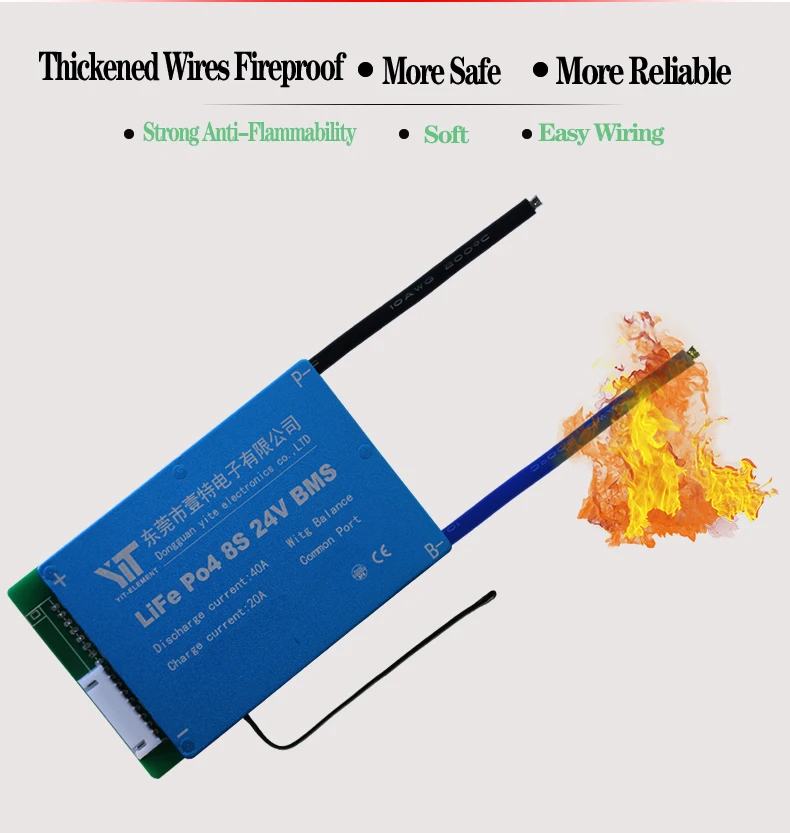

Wire:
safe and reliable
strong flame retardancy and good flexibility
good for wiring at various angles


Note: The MOS of the low-amperage protection board is installed on one side, and there isn't the aluminum heat sink 2.




Wiring Sequence

1. Please ensure to use parallel cable from YiTe(spacing is 2.54mm)
.
2. Please don't insert parallel cable into the BMS before connecting batteries,must mak
