SPECIFICATIONS
Active area: 52.3992*157.1976
Aspect Ratio: 27 : 9
Brand Name: Gesight
Certification: CE,RoHS
Display Size: 6.52
Display mode: AMOLED
Driver IC: RM692C4 (Recommend)
High-concerned chemical: None

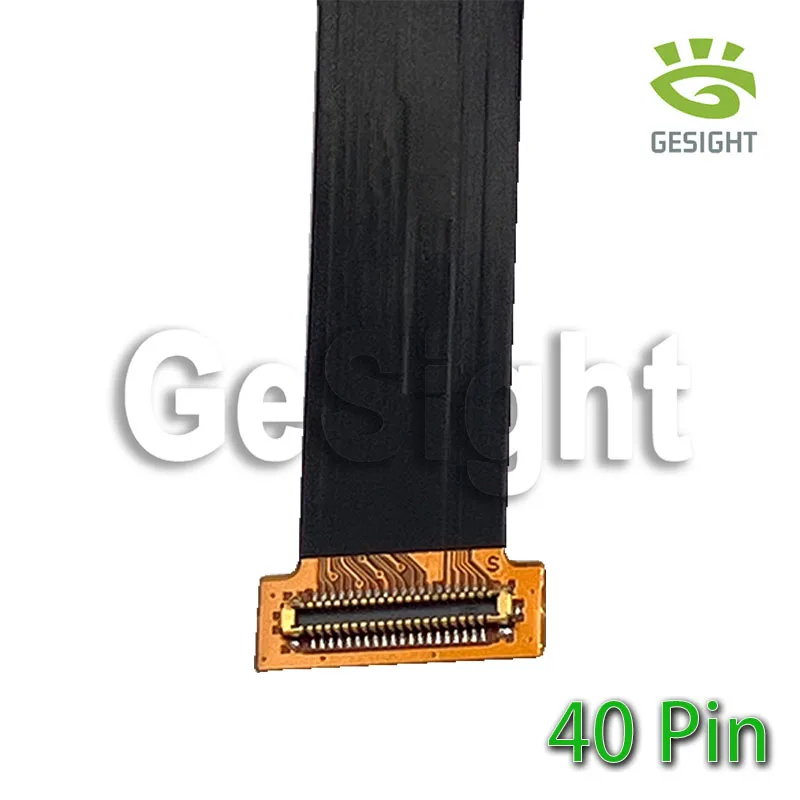

Interface: MIPI
Origin: Mainland China
Outline Dimension: 54.3792* 159.472
Product Type: TFT
Resolution: 2520X840 (SPR)
Touch IC: FT3658U (Recommend)
Touch Sensor: DOT
Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.
Different products collocations have different package, please confirm the shipping cost with us when place an order.
(4~6 days for most countries and area)For more specifications, such as display datasheet, IC datasheet, initial code, please contact us.
This display is assembled by professional LCD manufacturer-----Panox DisplayDatasheets and code are available for most of our display products, feel free to consult.
Features

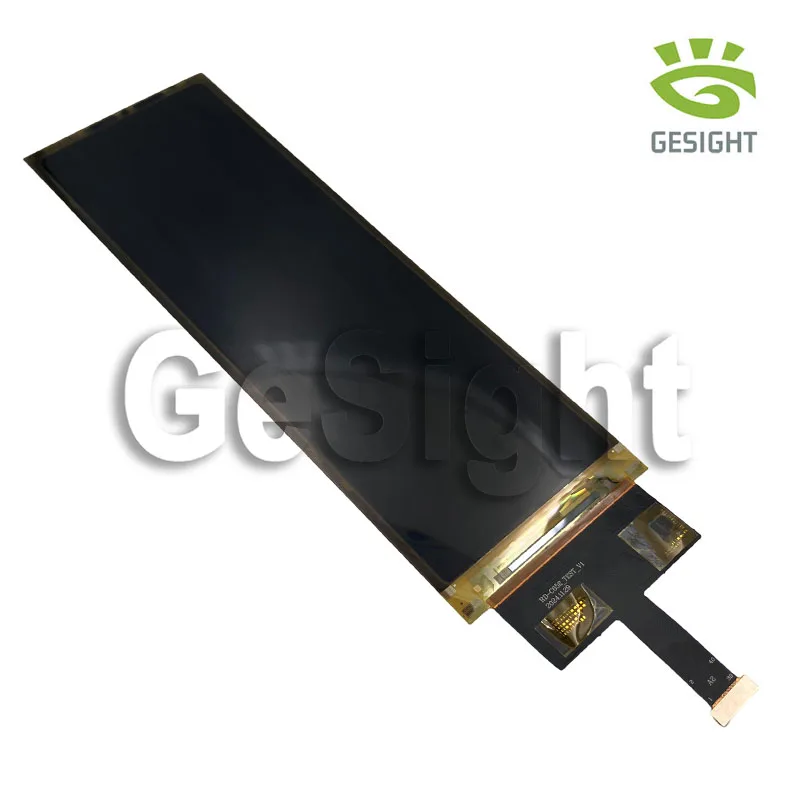

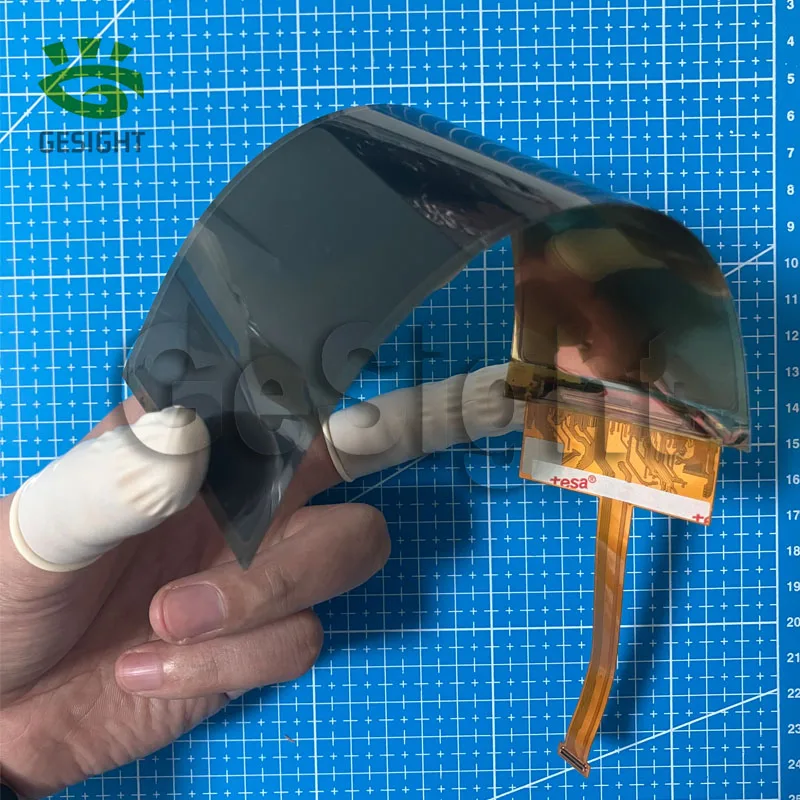

1. 6.52” Flexible AMOLED Panel
2. Supported FHD +(2520×840 pixels) Resolution
3. Green Design
4. Driving Frequency: support 60Hz & 90Hz；Compare to LCD, OLED has many advantages as follows:
Thin Like Paper:More than 50% thinner and lighter than LCD, creating an edgy form factor in style.
Green Power:Clock-mode standby can be up to 60 hours, much lower consumption compare to LCD displays.
"Wow" Effect:High contrast ratio and wide color gamut offer sharp and vivid image, and consistent display from any angle.
OLED driver as well as two divided into passive (PMOLED) active (AMOLED), which PMOLED simple structure, each pixel is represented by a separate cathode and anode control, no additional driver circuit, but too much control lines restrict its application of high-resolution large screen; AMOLED entire cathode surface electrode via a drive circuit driving the light emitting anode, significantly reducing the number of control lines, it has a low-power, high-resolution, fast response and other characteristics, AMOLED therefore g
