SPECIFICATIONS

Brand Name: MacroBase
High-concerned chemical: None
Item Type: Control Panel
Model Number: 4 axis CNC controller
Origin: Mainland China





Software

https://github.com/Macrobase-tech/CNC-Software





Yaml file upload

https://www.youtube.com/watch?v=M6cZLWVuZco



https://studio.youtube.com/video/-11RpAniZrs/edit







Button Function

s1 is reset,s2 to download firmware.

s1 connects to EN,s2 connects to Boot.




Features


Adopting dual-core ESP32 32-bit high-speed processor.
Compatible with Candle,Bcnc,CNC3D COMMANDER...
Support four stepper drivers,including X,Y,Z,A axis.
Support Homing,software/hardware endstop,Z probe.
Support hotspot,Wifi wireless to control.
Support 3pin laser. PWM output.
Support 12-24V DC.
Auto-cut off power when voltage exceeding 30V.


Automatically select external power supply as the main control input power,

and prevent reverse power transmission,protect USB port.

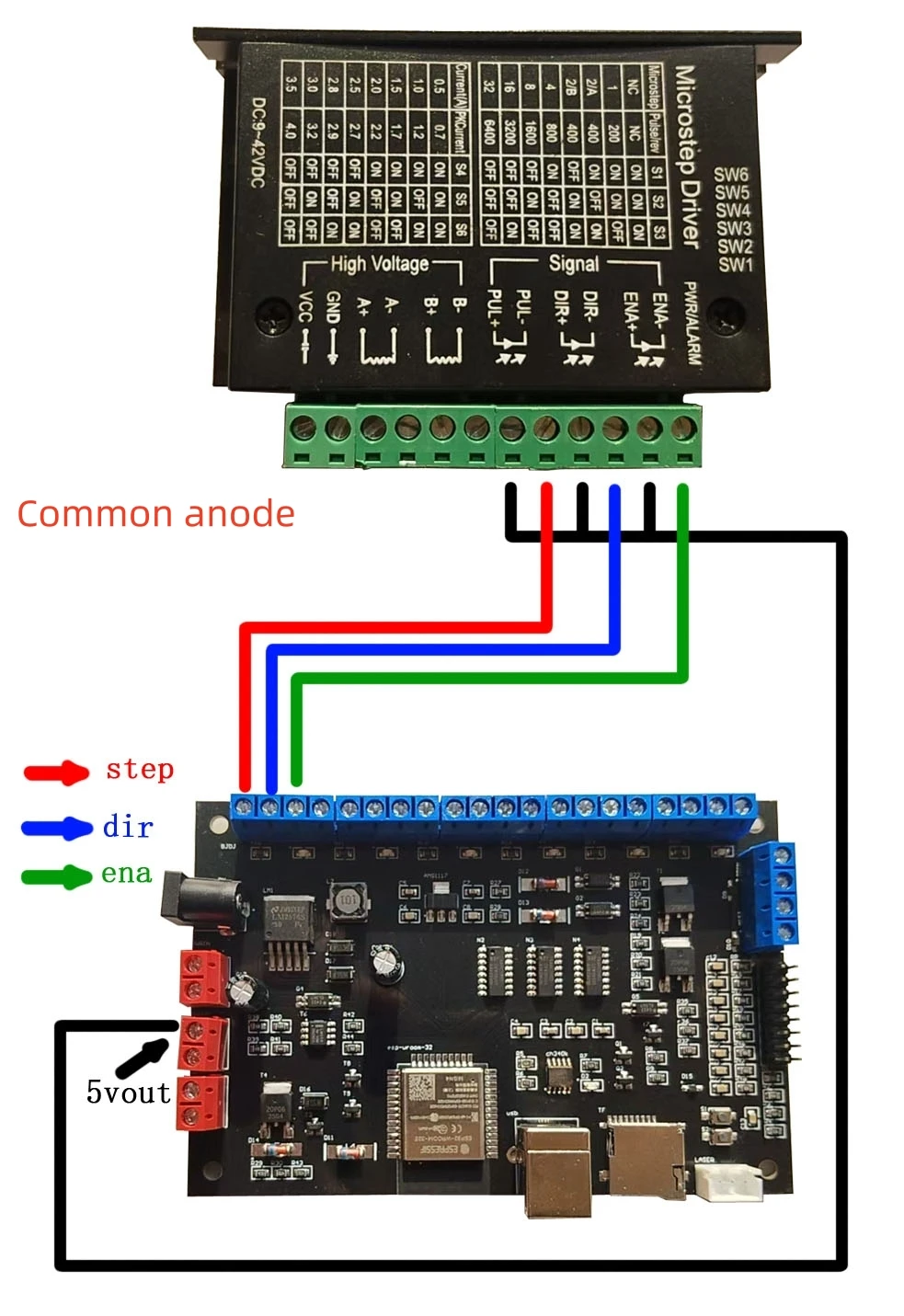

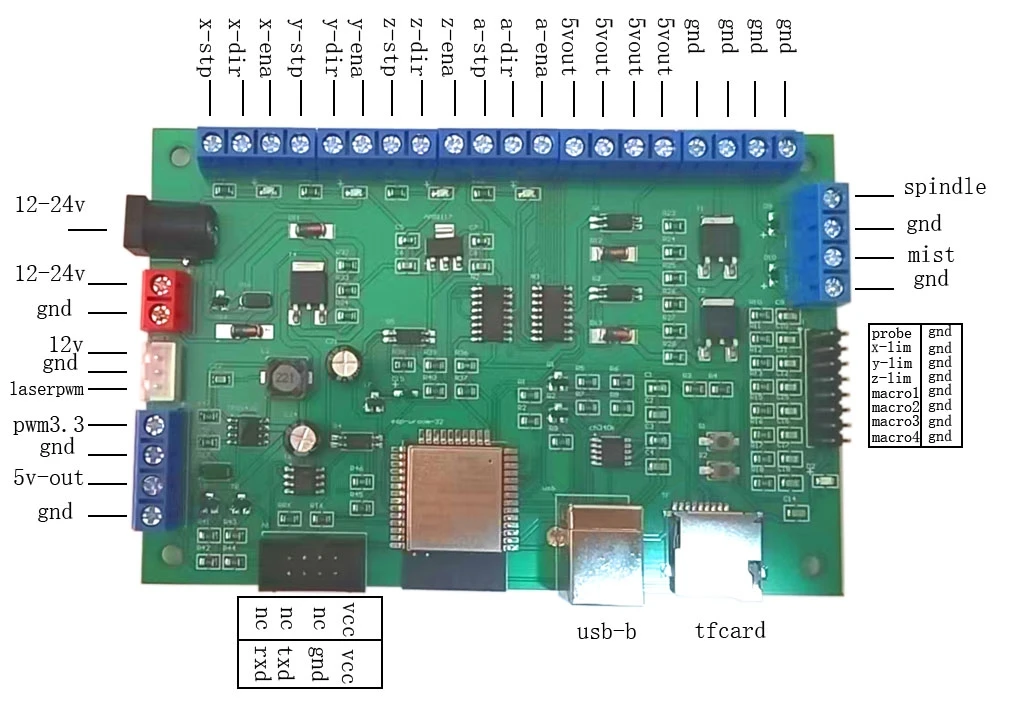

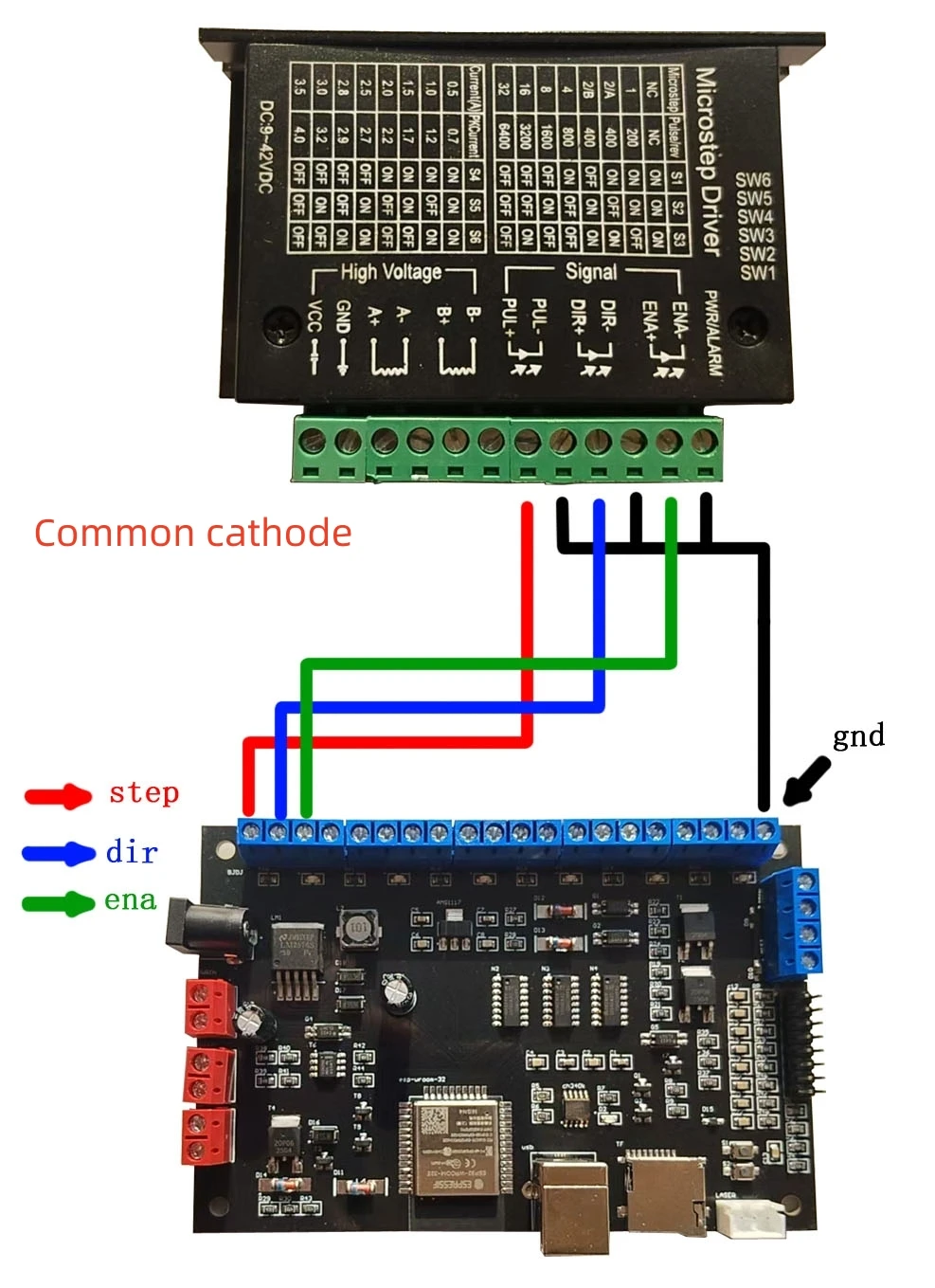

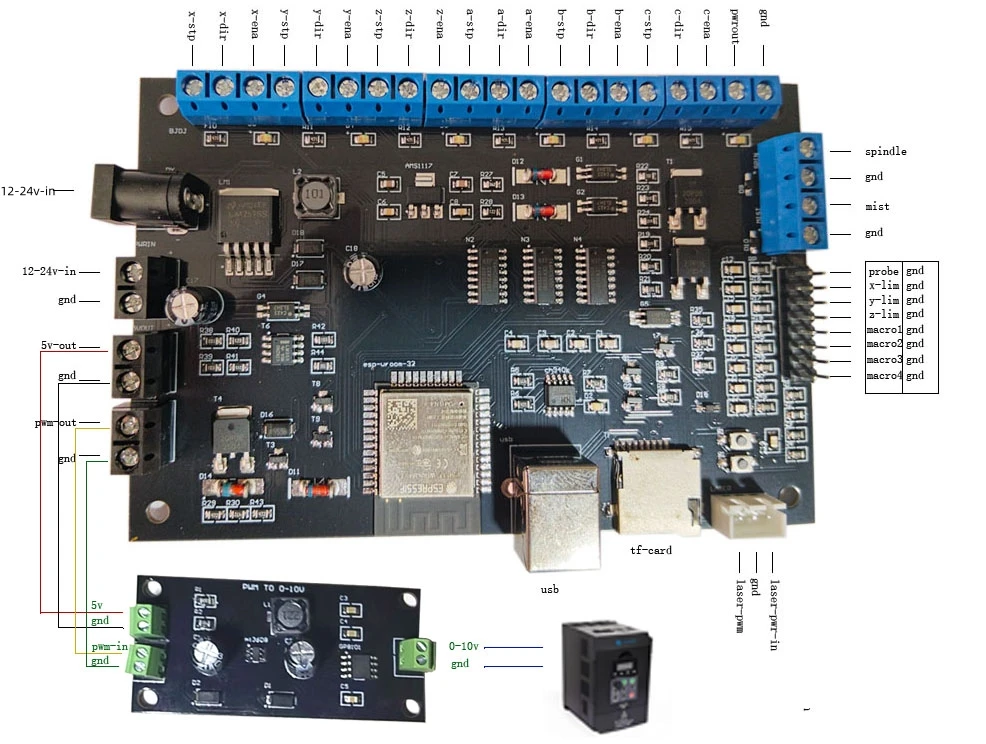

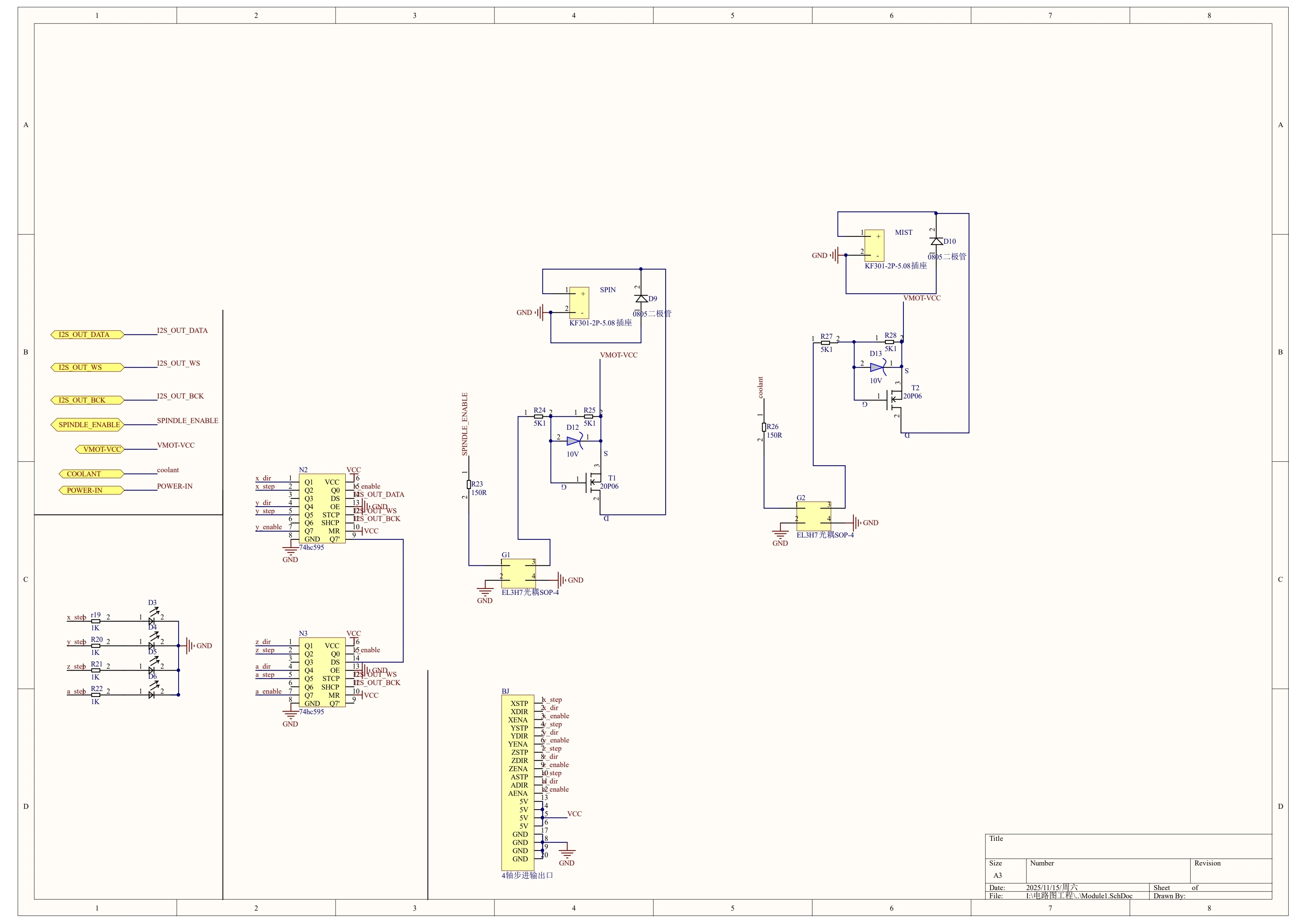

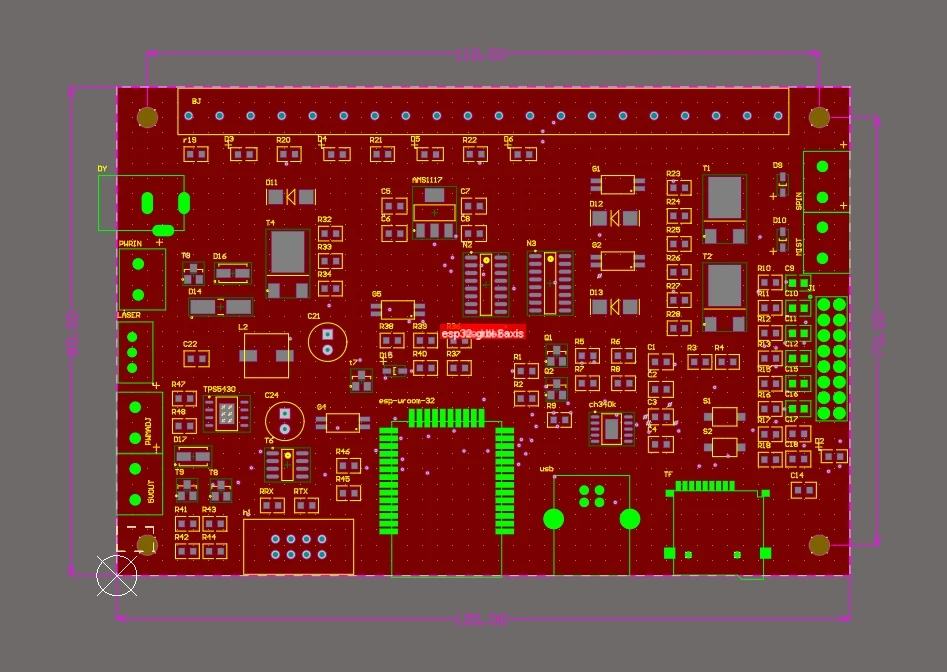

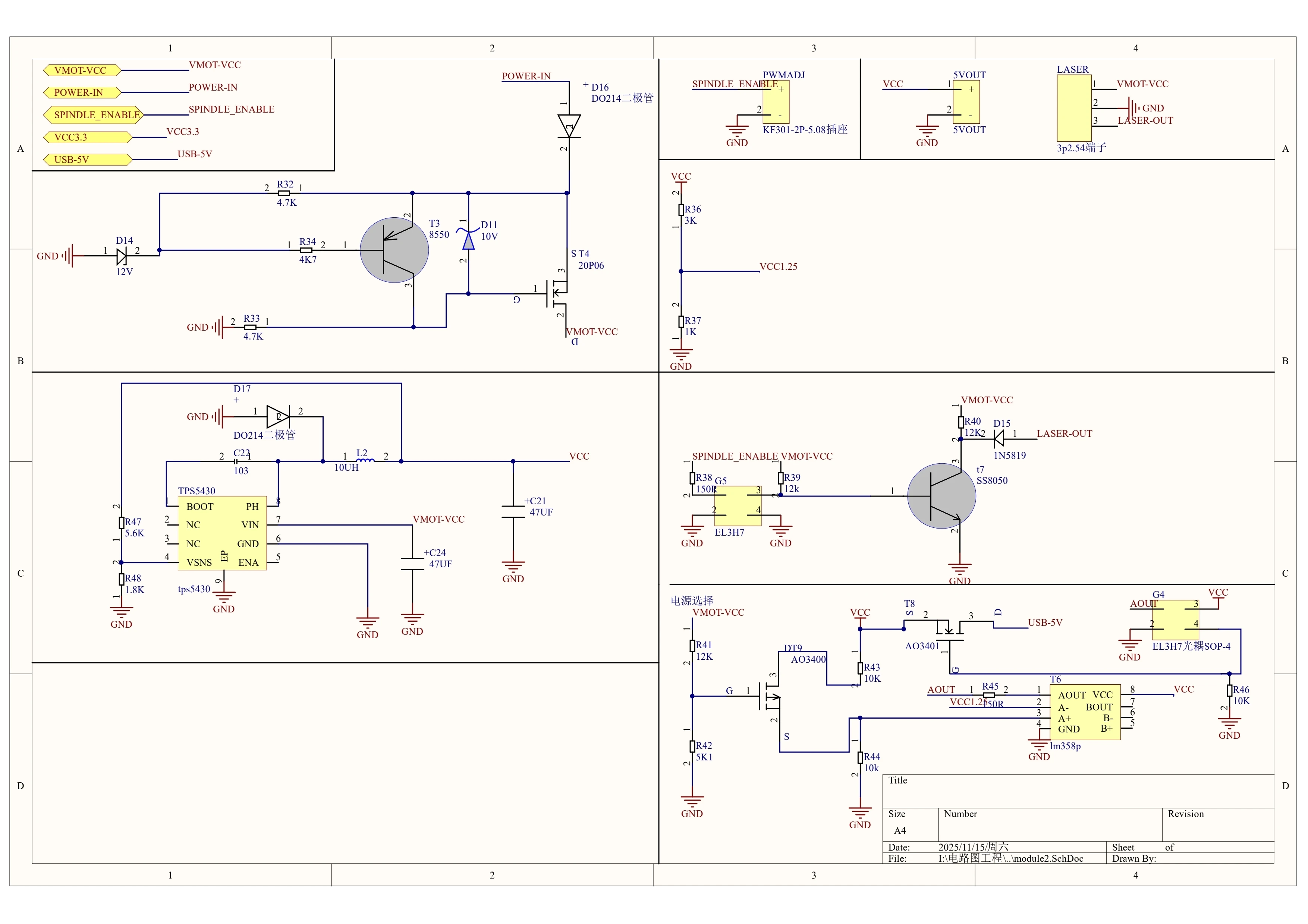

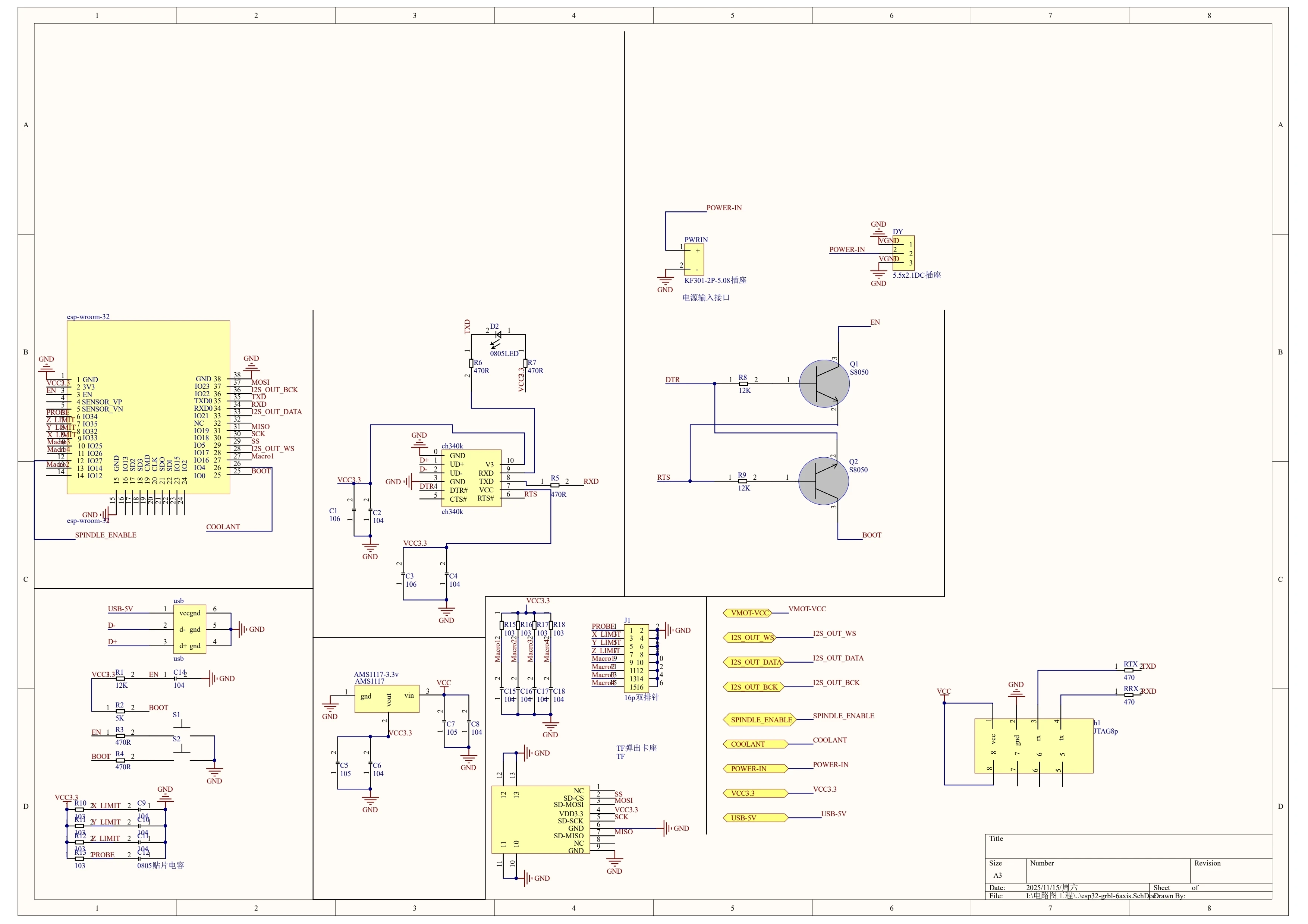

PROBE       Z-probe

X-LIM          X limit,NO

Y-LIM          Y limit,NO

Z-LIM          Z limit,NO

GND           XYZ axis com,Z probe

PWM-OUT   PWM output

GND           PWM ground

5vout          5v output

GND           All drivers PUL-,EAN-,DIR-

X-STEP      X-PUL+

X-EAN        X-ENA+

X-DIR         X-DIR+






















Software

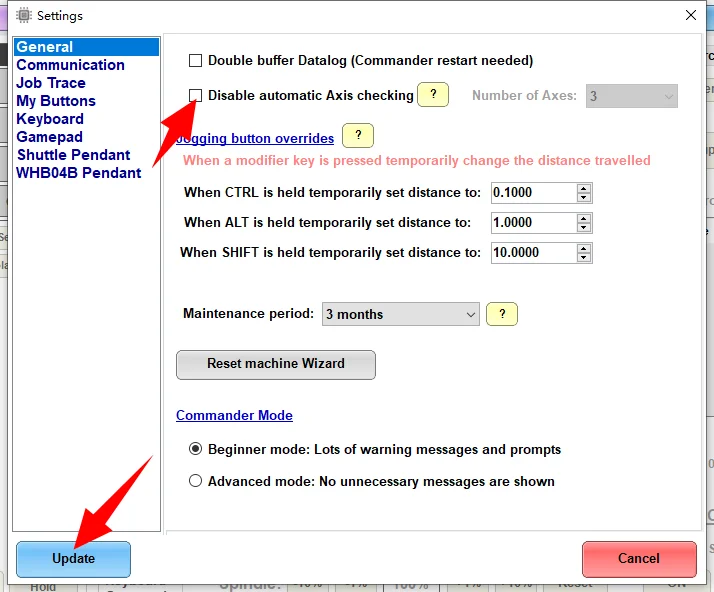

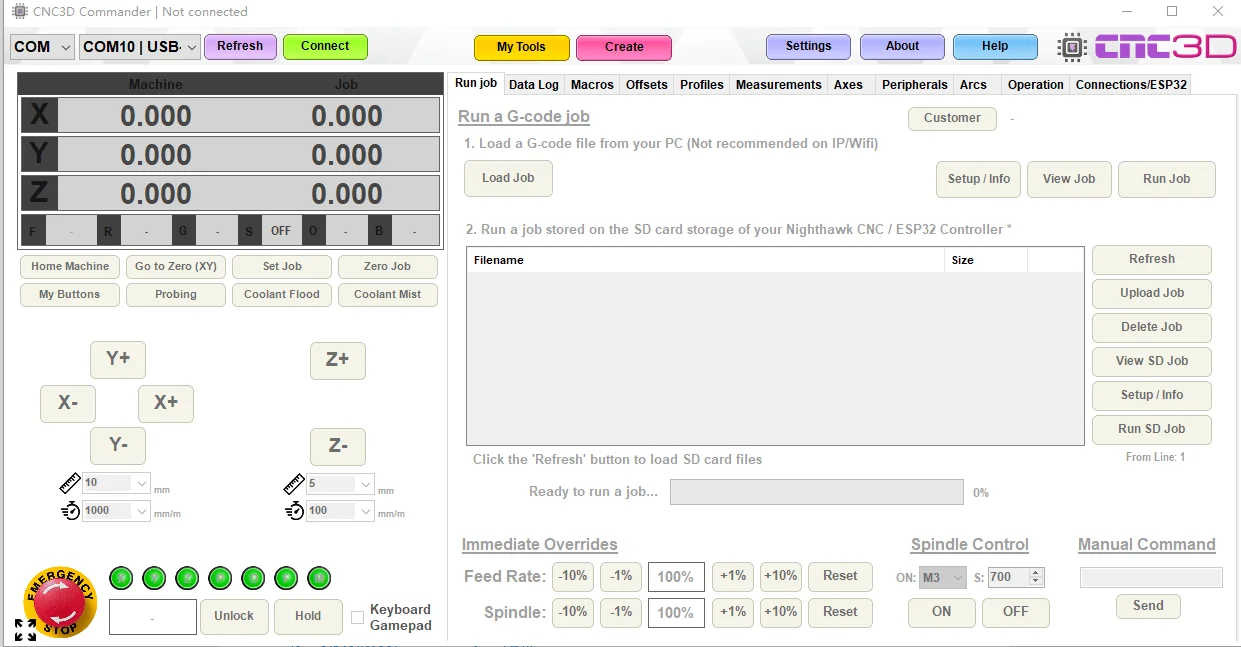

CNC3D Commander
