SPECIFICATIONS

Brand Name: SAGE LU MEI
Certification: CCC,ce,ROHS
Features: 12W Zigbee 3.0 Constant Current LED Driver
Item Type: Lighting Transformers
Material: ABS
Max Output Voltage: 48VDC
Model Number: PT-12A-WZS  /PT-12A-2-WZS
Origin: Mainland China
Output Power: Max.12W
Output Voltage: 10~42VDC
PT-12A-2-WZS CCT: Zigbee 3.0 Constant Current CCT LED Driver
PT-12A-2-WZS Output Current: 2CHx(150~450)mA
PT-12A-WZS: Zigbee 3.0 Constant Current LED Driver
PT-12A-WZS Output Current: 100-700mA
Suitable: downlight  spotlight LED LAMP
Warranty: 1

10-42VDC 12W Zigbee 3.0 Constant Current LED Driver 100-700mA/ 2x(150~450)mA for Downlight Spotlight And Decorative Applications

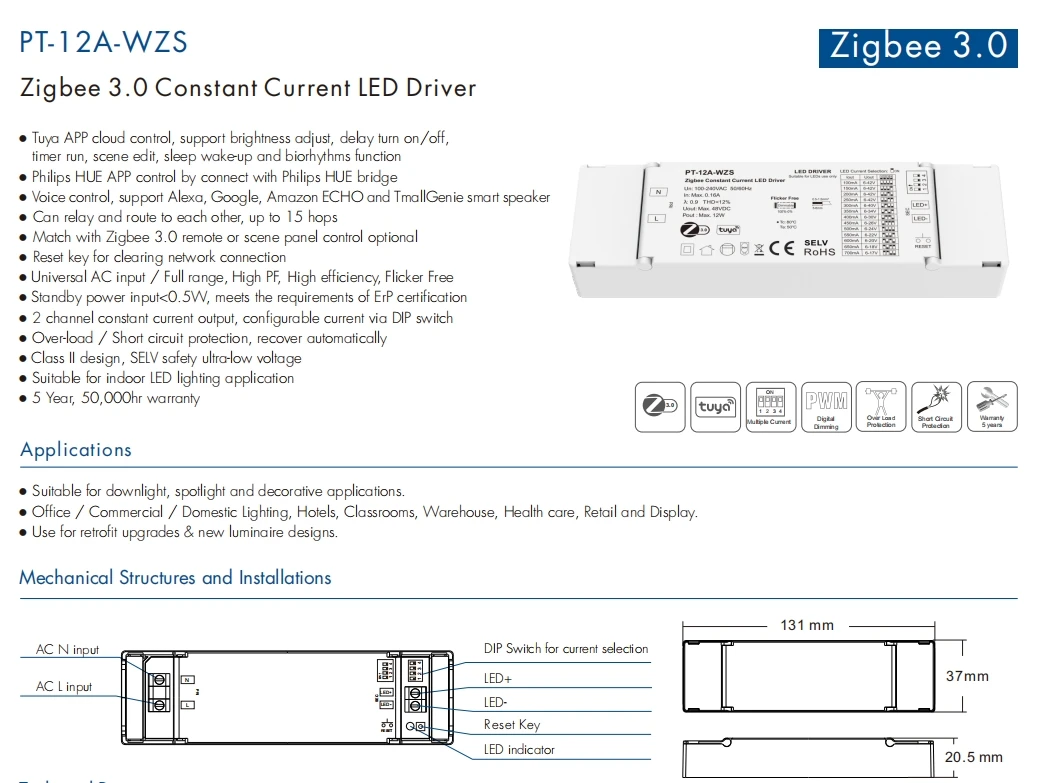

PT-12A-WZS:

Zigbee 3.0 Constant Current LED Driver

● Tuya APP cloud control, support brightness adjust, delay turn on/off, timer run, scene edit, sleep wake-up and biorhythms function

● Philips HUE APP control by connect with Philips HUE bridge

● Voice control, support Alexa, Google, Amazon ECHO and TmallGenie smart speaker

● Can relay and route to each other, up to 15 hops

● Match with Zigbee 3.0 remote or scene panel control optional

● Reset key for clearing network connection

● Universal AC input / Full range, High PF, High efficiency, Flicker Free

● Standby power input<0.5W, meets the requirements of ErP certification

● 2 channel constant current output, congurable current via DIP switch

● Over-load / Short circuit protection, recover automatically

● Class II design, SELV safety ultra-low voltage

● Suitable for indoor LED lighting application



PT-12A-2-WZS:

Zigbee 3.0 Constant Current CCT LED Driver

● Tuya APP cloud control, support color temp and brightness adjust, delay turn on/off, timer run, scene edit, sleep wake-up and biorhythms function

● Philips HUE APP control by connect with Philips HUE bridge

● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie smart speakers.

● Can relay and route to each other, up to 15 hops

● Match with Zigbee 3.0 remote or scene panel control optional

● Reset key for clearing network connection

● Universal AC input / Full range, High PF, High efficiency, Flicker Free

● Standby power input<0.5W, meets the requirements of ErP certification

● 2 channel constant current output, congurable current via DIP switch

● Over-load / Short circuit protection, recover automatically

● Class II design, SELV safety ultra-low voltage

● Suitable for indoor LED lighting application





Applications

● Suitable for downlight, spotlight and decorative applications.

● Ofce / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display

● Use for retrot upgrades & new luminaire designs.
